Standard Round Duct Supports

Standard Round Duct Supports are designed for all rooftop ductwork runs and can accommodate ducts up to 84 inches wide. Built on the dependable RPS equipment rail base, they feature a galvanized steel slide channel, continuously threaded rods, and a durable galvanized steel duct slide assembly. With 12 inches of vertical and horizontal adjustment, these supports provide a strong, flexible, and reliable solution for rooftop duct installations.

Features

For all rooftop ductwork runs
Accommodates ducts up to 84" wide
Standard RPS equipment rail base
Galvanized steel slide channel
Galvanized continuously threaded rods
Adjusts 12" vertically & horizontally
Galvanized steel duct slide assembly

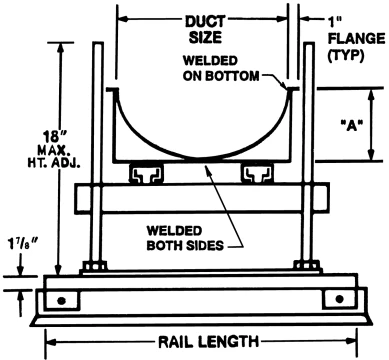

Size Chart

ROUND DUCT SIZE	EQUIPMENT RAIL LENGTH
up to 12" Diameter	2'- 0"
12-1/4" to 24" Dia.	3'- 0"
24-1/4" to 36" Dia.	4'- 0"
36-1/4" to 48" Dia.	5'- 0"
48-1/4" to 60" Dia.	6'- 0"
60-1/4" to 72" Dia.	7'- 0"
72-1/4" to 84" Dia.	8'- 0"
