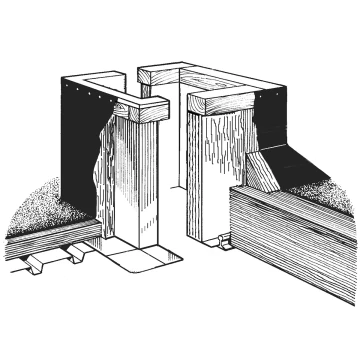

RC-6A and RC-6B — Uninsulated Curbs
The RC-6A and RC-6B Uninsulated Curbs are premanufactured systems designed for applications where insulation is not required. Constructed from 14-gauge galvanized steel with continuous welded corner seams and an integrated wood nailer with concealed fasteners, these unitized curbs provide a durable, cost-effective solution. With customizable height and full base plate design, the RC-6 accommodates deck slope variations to provide a level mounting surface for rooftop equipment.
Features
- 14-gauge galvanized steel construction
- Wood Nailer: "A" Style Flush and "B" Style Overhang options
- Continuous welded corner seams
- Customizable curb height as shown on drawings
- Full base plate for stability
- Box section design
- Unitized factory construction
- Accommodates designed deck slope
- Level mounting surface for equipment
- Includes burglar bars and liners as specified
- Field-assembled curbs not acceptable
