RC-2A and RC-2B — For Lightweight Fill, Tapered Insulation, or Single-Ply Roofing Application

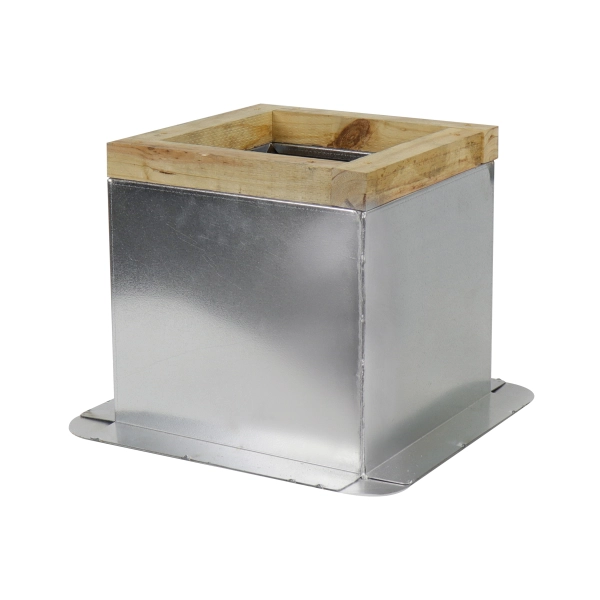

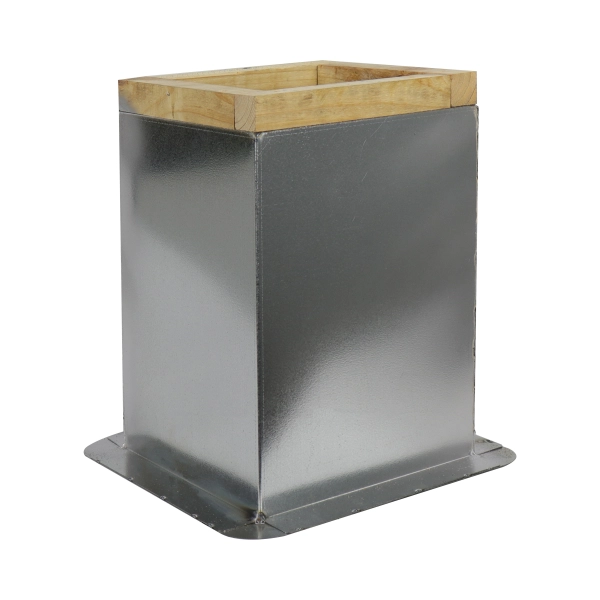

The RC-2A and RC-2B Roof Curbs are factory-insulated, premanufactured systems designed for lightweight fill, tapered insulation, and single-ply roofing applications. Constructed from 18-gauge galvanized steel with continuous welded corner seams and an integrated wood nailer with concealed fasteners, these unitized curbs feature 1-1/2" of 3 LB. density GREENGUARD fiberglass insulation. With a standard 12" height and full base plate design, the RC-2 accommodates deck slope variations to provide a level mounting surface for rooftop equipment while maintaining structural integrity.
Features
- 18-gauge galvanized steel construction
- 1-1/2", 3 LB. density GREENGUARD fiberglass insulation
- Wood Nailer: "A" Style Flush and "B" Style Overhang options
- Continuous welded corner seams
- Standard 12" curb height (customizable as needed)
- Full base plate for stability
- Box section design with internal stiffeners
- Unitized factory construction
- Accommodates designed deck slope
- Level mounting surface for equipment
- Includes burglar bars and liners as specified
- Field-assembled curbs not acceptable
