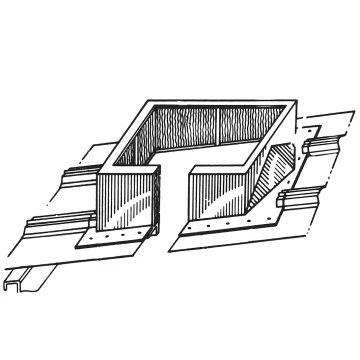

RC-7 For Panel Rib Pre-Engineered Metal Building Roofs
These roof curbs (RC-7) are factory-insulated, premanufactured systems engineered specifically for panel rib pre-engineered metal building roofs. Constructed from 18-gauge galvalume® steel with continuous welded watertight seams and a built-in cricket for superior water deflection, these unitized curbs feature 1-1/2" of 3 LB. density GREENGUARD fiberglass insulation. With a standard 8" overall height and full base plate design, the RC-7 style accommodates deck slope variations to provide a level mounting surface for rooftop equipment while maintaining structural integrity.
Condition 1-
Separate Cap Cells
Allows for flexible field positioning by contractor
Condition 2-
Under/Under
Flat curbs flanges for installation below roof panels
Condition 3-
Over/Over
For Installation over the front and rear roof panels
Condition 4-
Over/Under
For installation over the rear panel and under the front panel

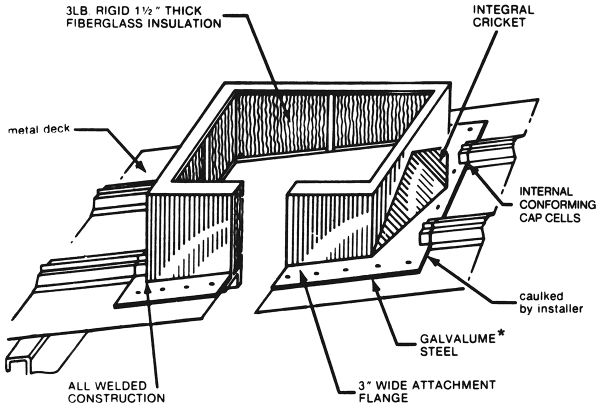

Features
- 18-gauge galvalume® steel construction
- 1-1/2", 3 LB. density GREENGUARD fiberglass insulation
- Continuous welded watertight seams
- Built-in cricket for water deflection
- Standard overall height 8" unless specifically addressed
- Full base plate for stability
- Box section design with internal stiffeners
- Unitized factory construction
- Accommodates designed deck slope
- Level mounting surface for equipment
- Includes burglar bars and liners as specified
- Field-assembled curbs not acceptable
